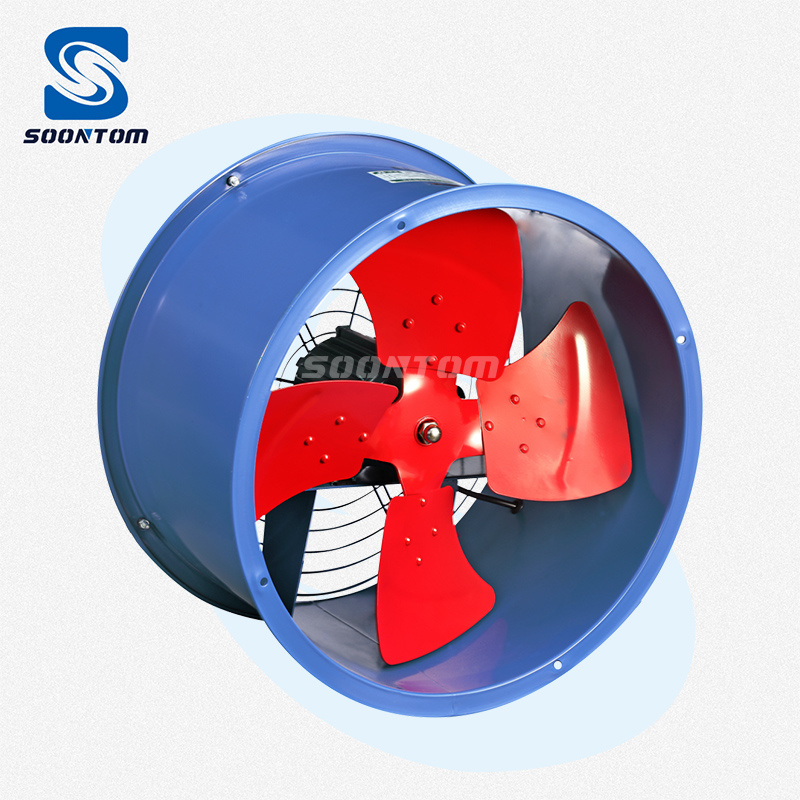

Industrial Duct Axial Exhaust Fan
Feature:
The Fan adopts specially designed forward curved three-dimensional twist blade
Low noise,large air flow,high efficiency and stable air pressure
High-quality punching sheet steel for structural parts, easy to install
Utilizes CAD optimized design for blade and air outlet, turned edge flange
The fan is power coated with lasting bright color
The fan with ffront guard,bakc guard is option
Apllication:
Suitable for ventilation in industrial and mining enterprises,civil buildings, fatories, workshops, warehouse, public place,entertainment places and more.
Technical Information
| Model (No.) | Size (mm) | Voltage (V) | Power (kw) | Revolution (rpm) | Air Volume (m3/h) | Pressure (pa) |
2G-2 | 200/8" | 220/380 | 0.18 | 2800 | 1880 | 80 |
2.5G-2 | 250/10" | 220/380 | 0.25 | 2800 | 3700 | 160 |
3G-4 | 300/12" | 220/380 | 0.25 | 1430 | 2600 | 85 |
3G-2 | 300/12" | 220/380 | 0.37 | 2800 | 4600 | 230 |
3.5G-4 | 350/14" | 220/380 | 0.37 | 1430 | 3700 | 130 |
3.5G-2 | 350/14" | 220/380 | 0.75 | 2800 | 6000 | 250 |
4G-4 | 400/16" | 220/380 | 0.55 | 1430 | 5300 | 166 |
4G-2 | 400/16" | 220/380 | 1.1 | 2800 | 8000 | 300 |
5G-4 | 500/20" | 220/380 | 0.75 | 1430 | 9300 | 196 |
5G-2 | 500/20" | 220/380 | 1.5 | 2800 | 14000 | 350 |
5G-6 | 500/20" | 380 | 0.37 | 960 | 7700 | 98 |
5G-4 | 500/20" | 220/380 | 1.5 | 1430 | 10400 | 210 |
6G-4 | 600/24" | 220/380 | 2.2 | 1430 | 18700 | 294 |
6G-6 | 600/24" | 380 | 1.1 | 960 | 13000 | 176 |
6G-2 | 600/24" | 380 | 3 | 2800 | 22000 | 400 |
6G-4 | 600/24" | 380 | 3 | 1430 | 19500 | 300 |
7G-4 | 700/28" | 380 | 3 | 1430 | 24500 | 315 |
7G-6 | 700/28" | 380 | 2.2 | 960 | 21500 | 235 |
8G-4 | 800/32" | 380 | 4 | 1430 | 30000 | 345 |
8G-6 | 900/32" | 380 | 2.2 | 960 | 25000 | 190 |
9G-4 | 900/36" | 380 | 5.5 | 1430 | 35000 | 295 |
9G-6 | 900/36" | 380 | 3 | 960 | 26000 | 251 |
10G-6 | 1000/40" | 380 | 4 | 960 | 32000 | 280 |
Q. Are you a manufacturer or a trading company?
A. We are a factory
Q. Where is your factory? Can i visit your factory?
A. Our factory is located in Foshan, Guangdong, welcome to visit our factory
Q. What products do you produce?
A. Centrifugal fan, axial fan, portable ventilator, duct fan, exhaust fan, dust collector, ring blower, high& medium & low pressure blower, misting fan, spray fan, etc, welcome to contact us to learn more details
Q. Can you offer sample?
A. Yes, we will prepare the normal sample for 5~7days, special customized need a little long time.
Q. What is your quality control system?
A. Each product needs to be inspected by QC before delivery.
Q. How long will it take to ship after order?
A. 20~30 days for one container
Q. If I have special require on color and logo, can you do that?
A. Yes, we can change the color as your requirements, also can put your logo on the products
Q. What is your payment terms?
A. T/T or LC at sight, 30% deposit in advance, the balance should be paid before shipping
