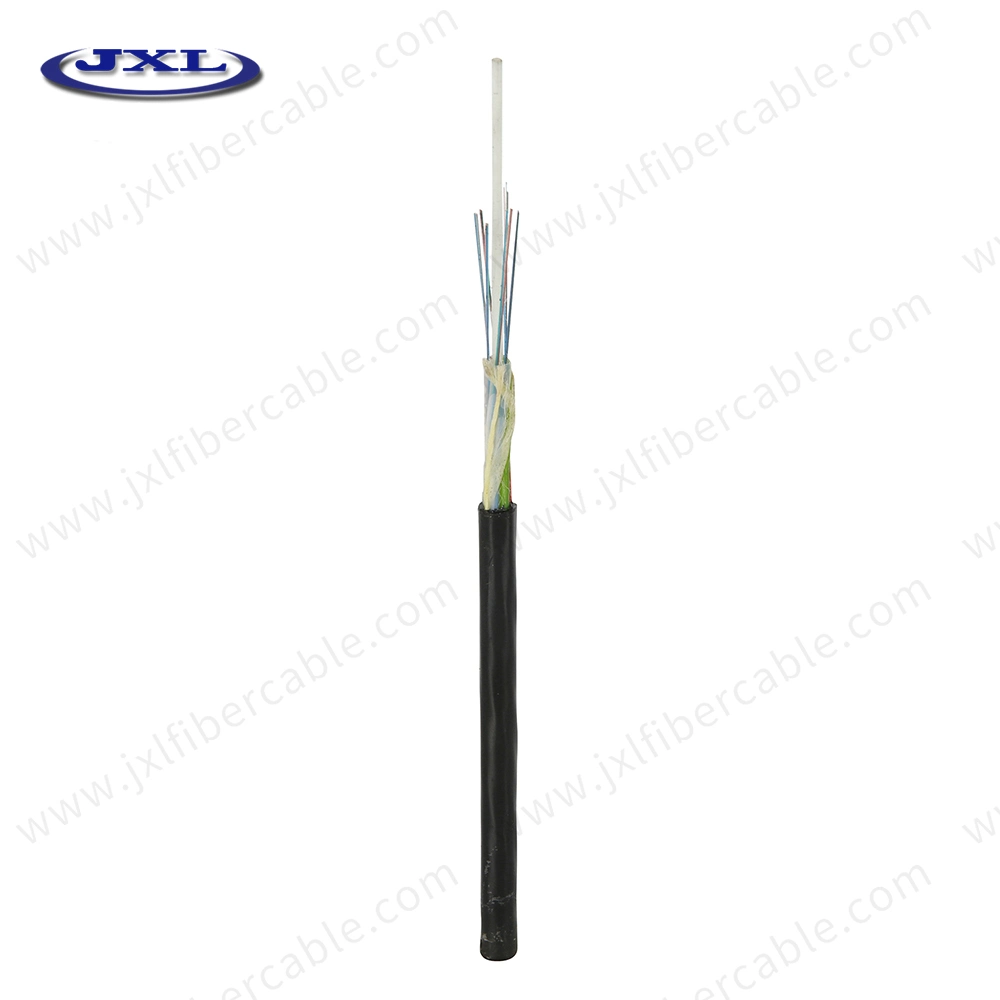

Non-metallic Strength Member Non-armored Cable
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
@1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km | |
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
| |
@1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
GYFTY-2~6 | 2~6 | 1 | 5 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 4 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 3 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY -20~24 | 20~24 | 4 | 2 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 1 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 0 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-2~6 | 2~6 | 1 | 6 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 5 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 4 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-20~24 | 20~24 | 4 | 3 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 2 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 1 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-38~42 | 38~42 | 7 | 0 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-44~48 | 44~48 | 4 | 2 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-50~60 | 50~60 | 5 | 1 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-62~72 | 62~72 | 6 | 0 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-2~6 | 2~6 | 1 | 7 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 6 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 5 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-20~24 | 20~24 | 4 | 4 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 3 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 2 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-38~42 | 38~42 | 7 | 1 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-44~48 | 44~48 | 8 | 0 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-50~60 | 50~60 | 5 | 2 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-62~72 | 62~72 | 6 | 1 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-74~84 | 74~84 | 7 | 0 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-86~96 | 86~96 | 8 | 0 | 13.9 | 154 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-98~108 | 98~108 | 9 | 1 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-110~120 | 110~120 | 10 | 0 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |

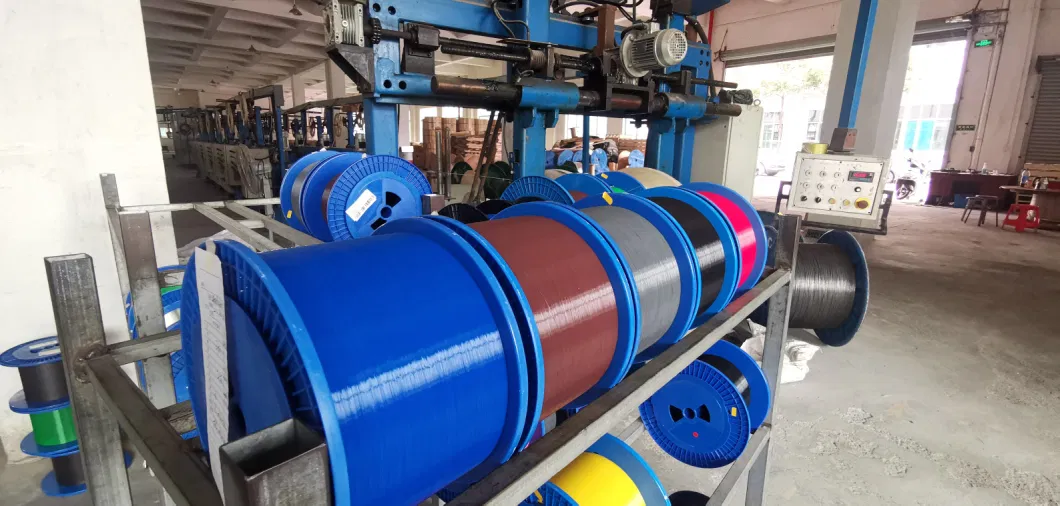

Our Factory:
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2.What is your fiber brand ?
YOFC, FiberHome, etc
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.
6.What is your delivery time?
Usually within 2-3 working days
7.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
